Intro

You can’t upload files to Redash directly. Instead, you have to pull them from somewhere. This guide shows how to load data from CSV files into Redash and query it with QRDS.

Step 1: Configure your data sources

You need two data sources to get started.

1. CSV
2. Query Results

From Settings visit the Data Sources tab. For each data source click New Data Source. Search for the data source type, click it, and name it.

It is easy to configure both data sources. Just name them (CSV and QR are most common) and click Create.

Step 2: Host your CSV at a public URL

Any host will work if it exposes a raw CSV file through a URL. Most of the popular file sharing platforms — including Dropbox, Google Sheets, OneDrive, and Github — show a file preview by default instead of the raw file.

So you might need to dig a little for the right link.

Shortcuts for a few common providers appear below.

Dropbox

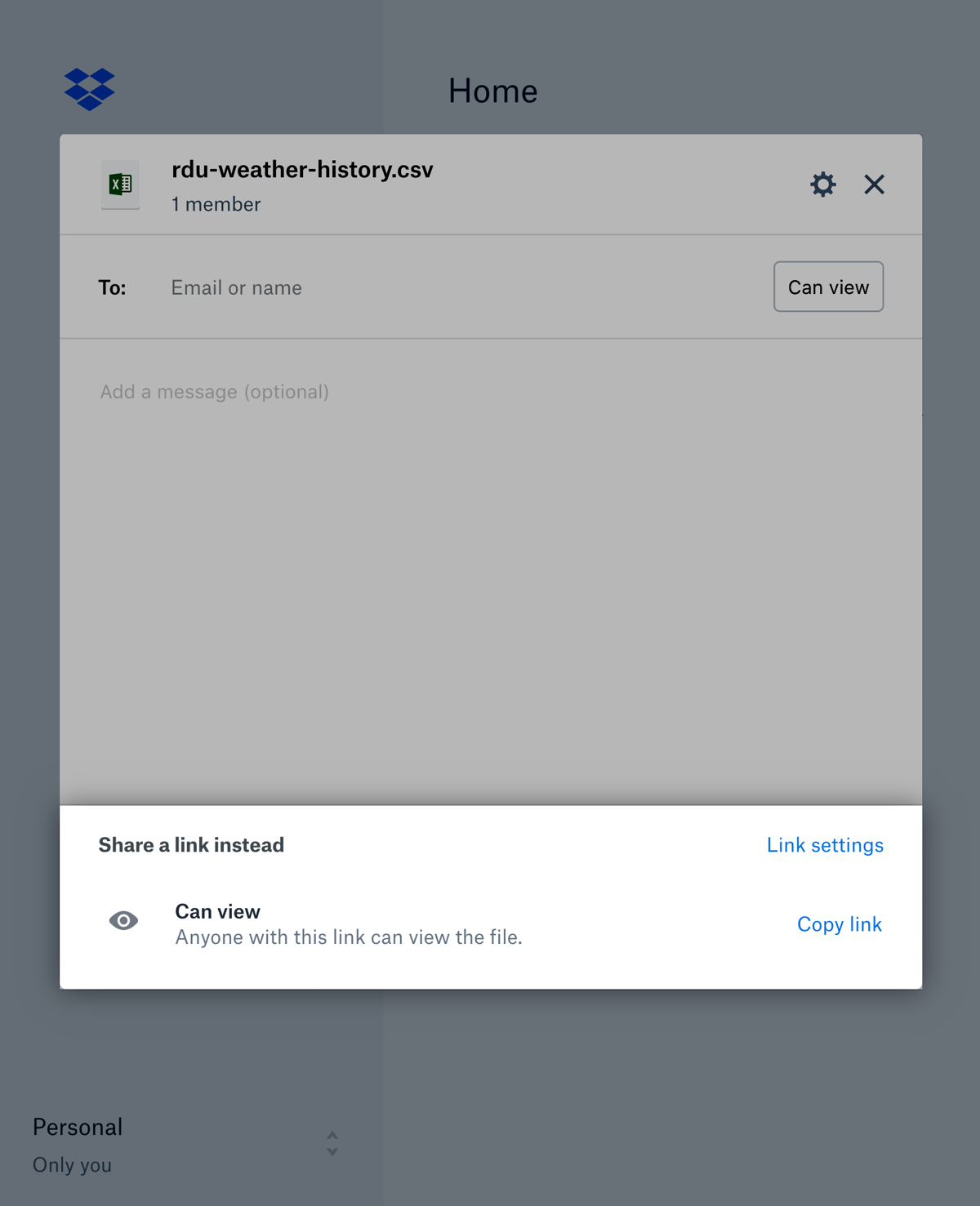

Generate a share link with permissions set so Anyone With Link can access the file. The link will look like this: https://www.dropbox.com/s/fc5e038d38a570/filename.csv?dl=0

Change the subdomain from www to dl. Then change the domain from dropbox.com to dropboxusercontent.com

The complete URL is: https://dl.dropboxusercontent.com/s/fc5e038d38a570/filename.csv?dl=0

Google Drive

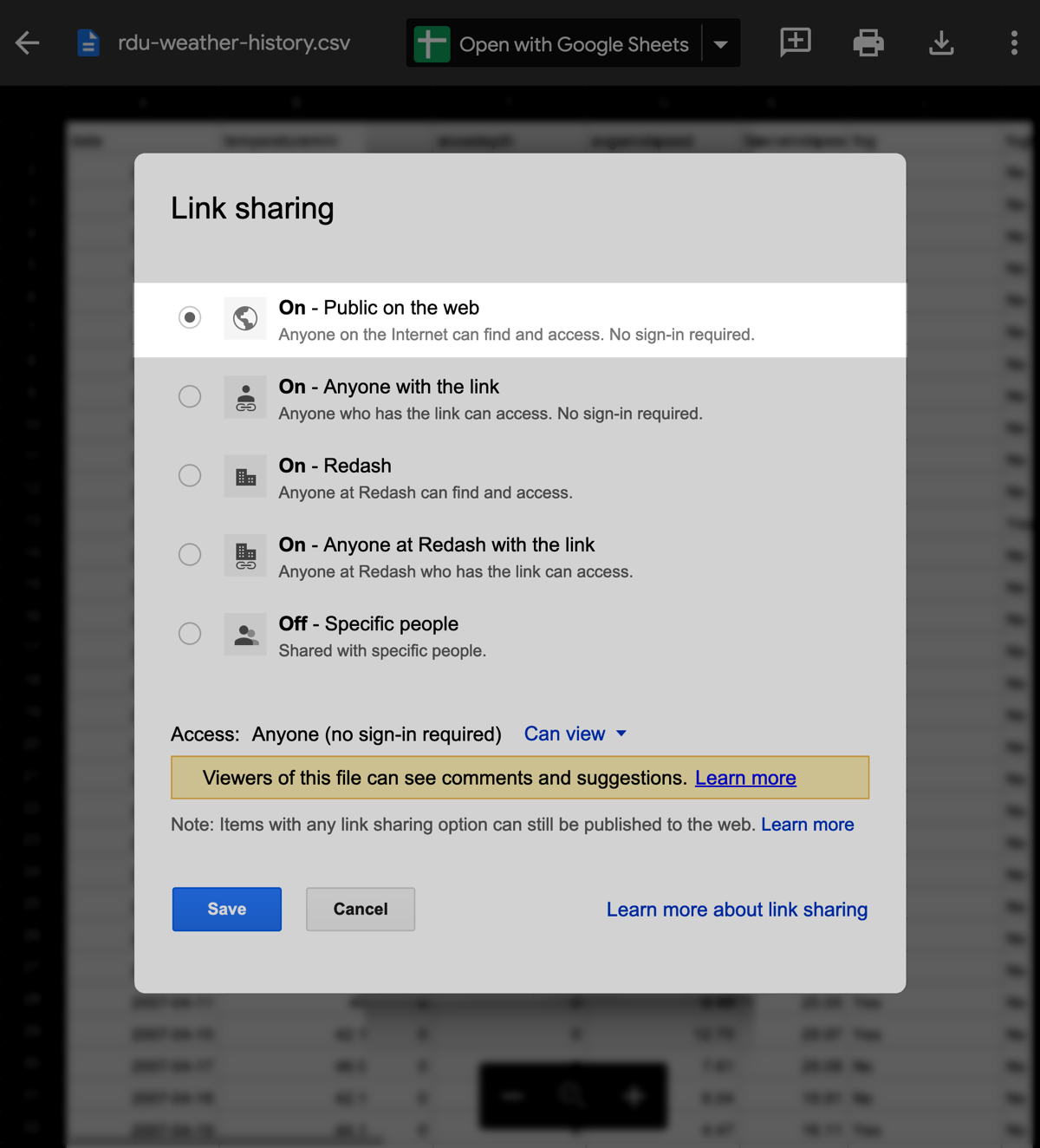

Generate a share link with permissions set so Anyone with link can view the file. The link will look like this: https://drive.google.com/file/d/fc5e038d38a570/view?usp=sharing

Copy the file identifier fc5e038d38a570 and add it to the end of this URL: https://drive.google.com/uc?id=

The complete URL is: https://drive.google.com/uc?id=fc5e038d38a570

OneDrive

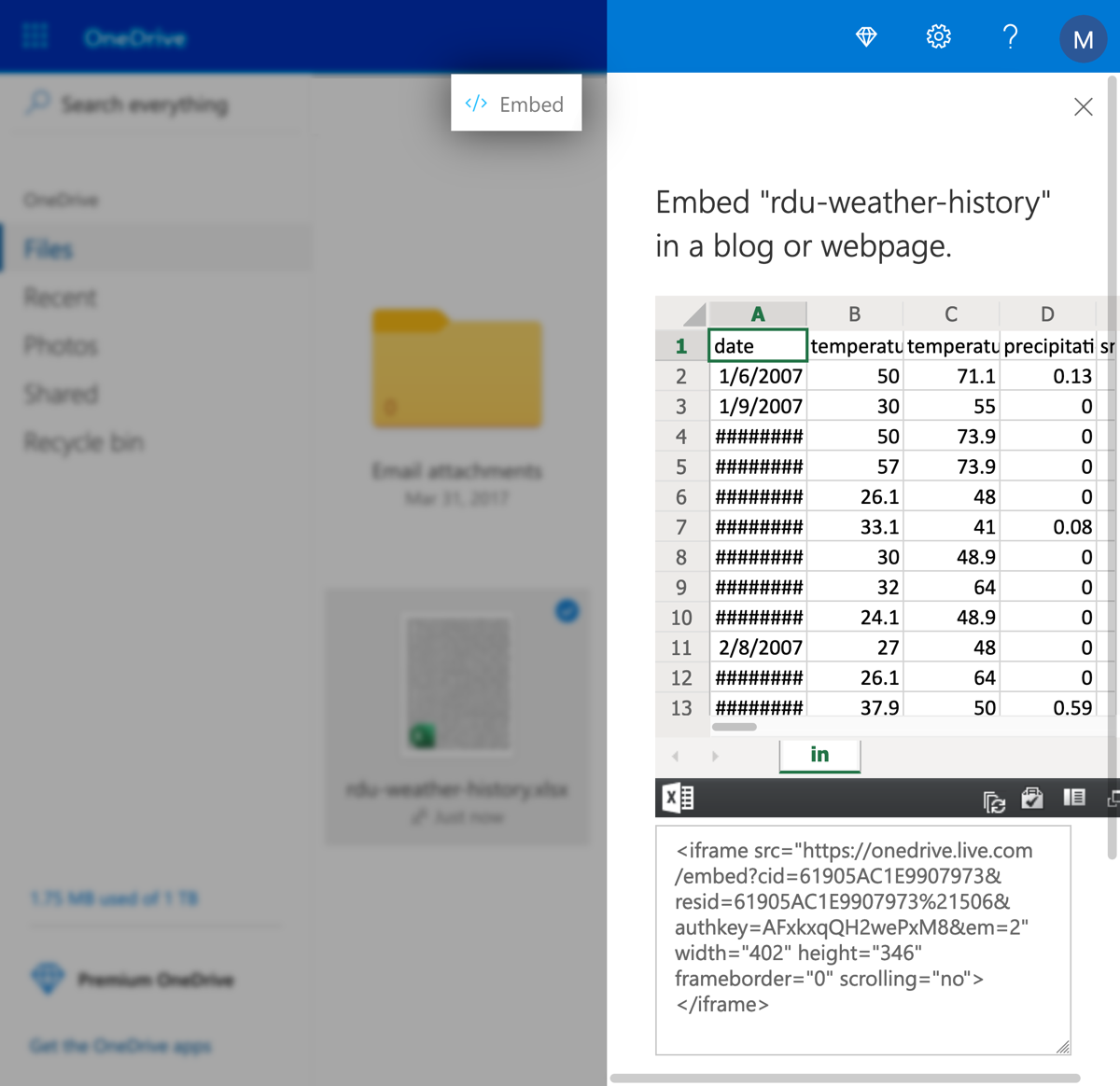

Generate an HTML embed snippet for your file. Then copy its src attribute. The attribute looks like this: https://onedrive.live.com/embed?cid=61905AC1E9907973&resid=61905AC1E9907973%21506&authkey=AFxkxqQH2wePxM8

Change the word embed to download.

The complete URL is: https://onedrive.live.com/download?cid=61905AC1E9907973&resid=61905AC1E9907973%21506&authkey=AFxkxqQH2wePxM8

Github

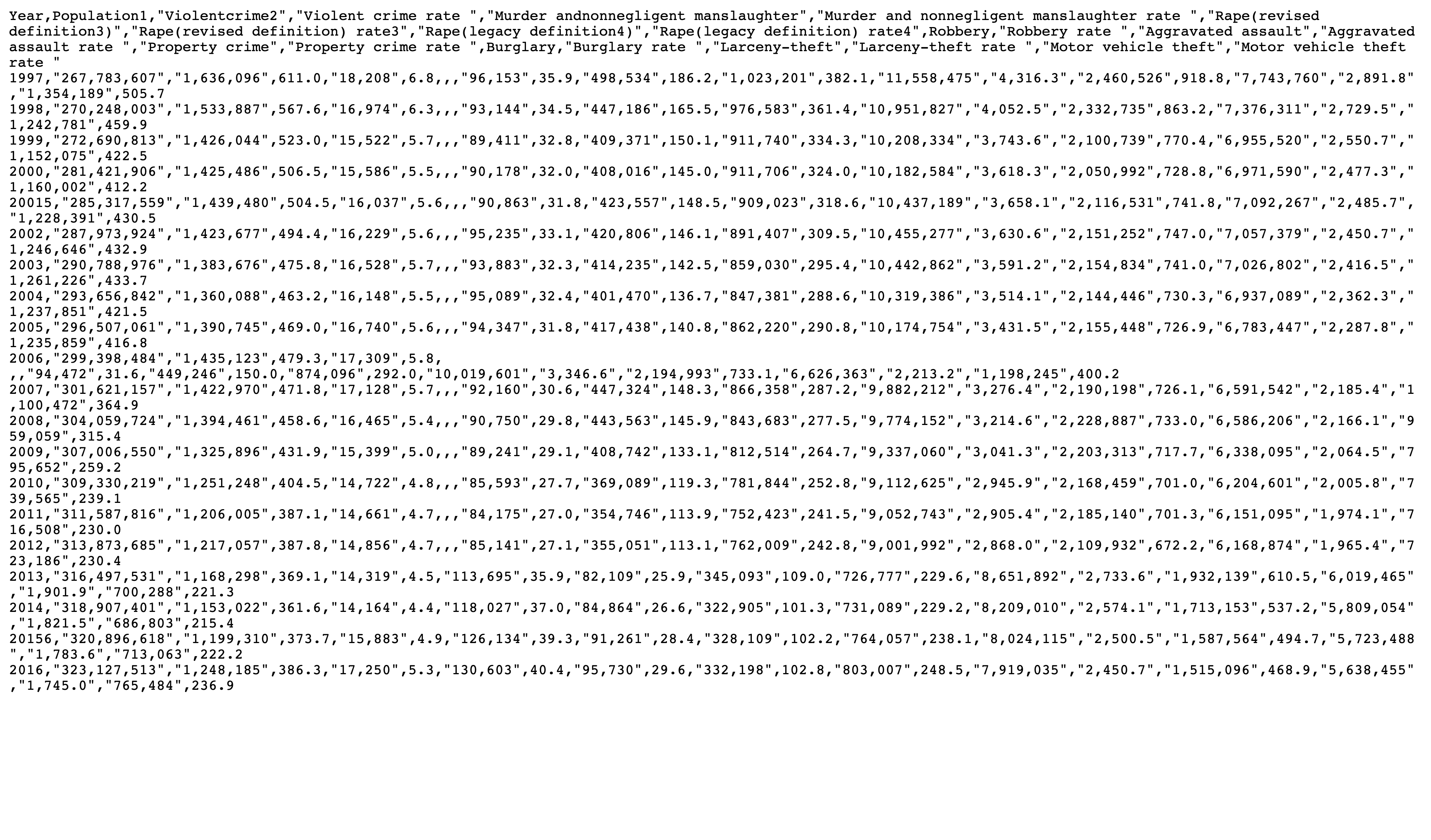

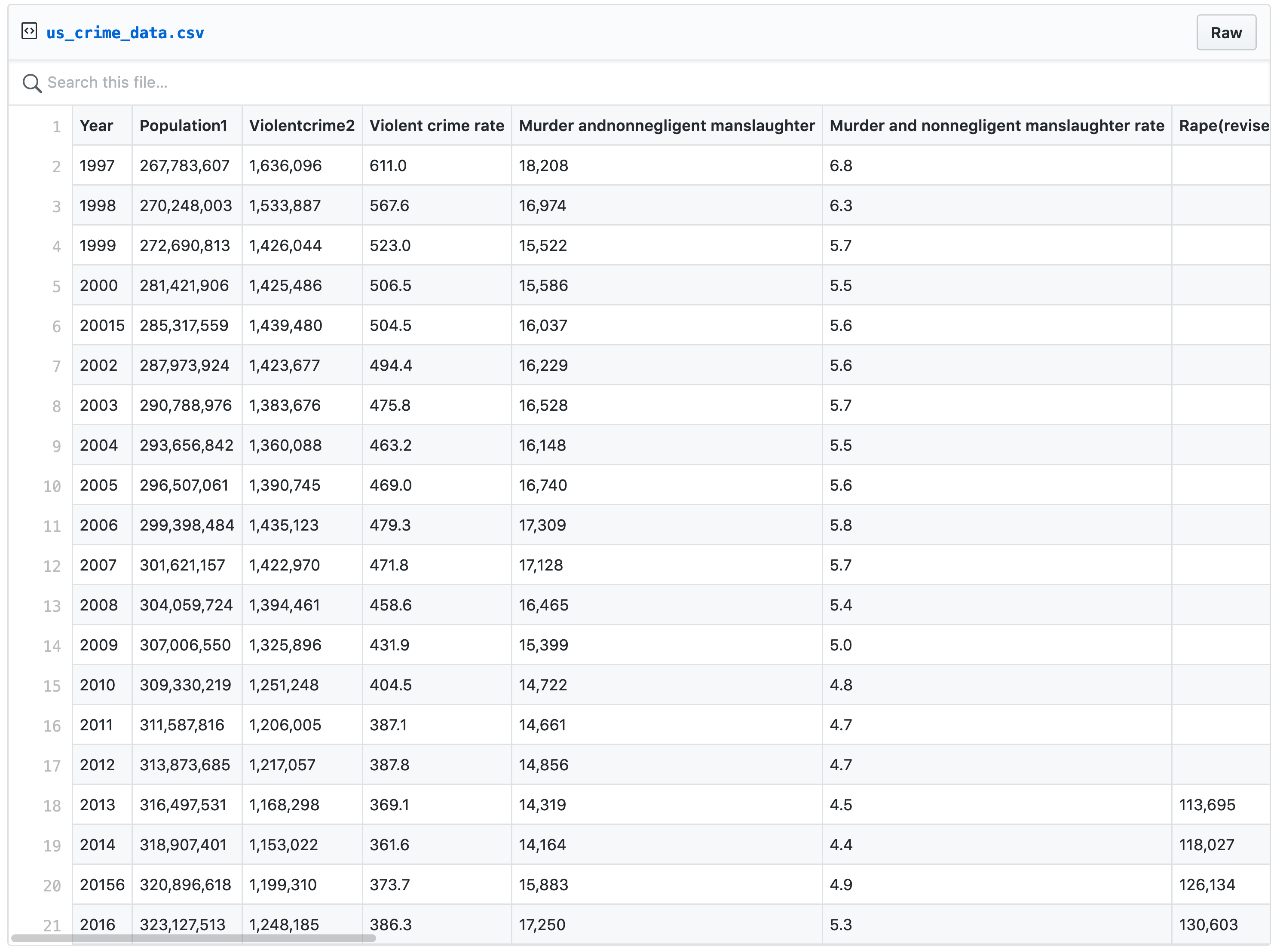

Right-click the Raw button and Copy Link Location.

iCloud Drive

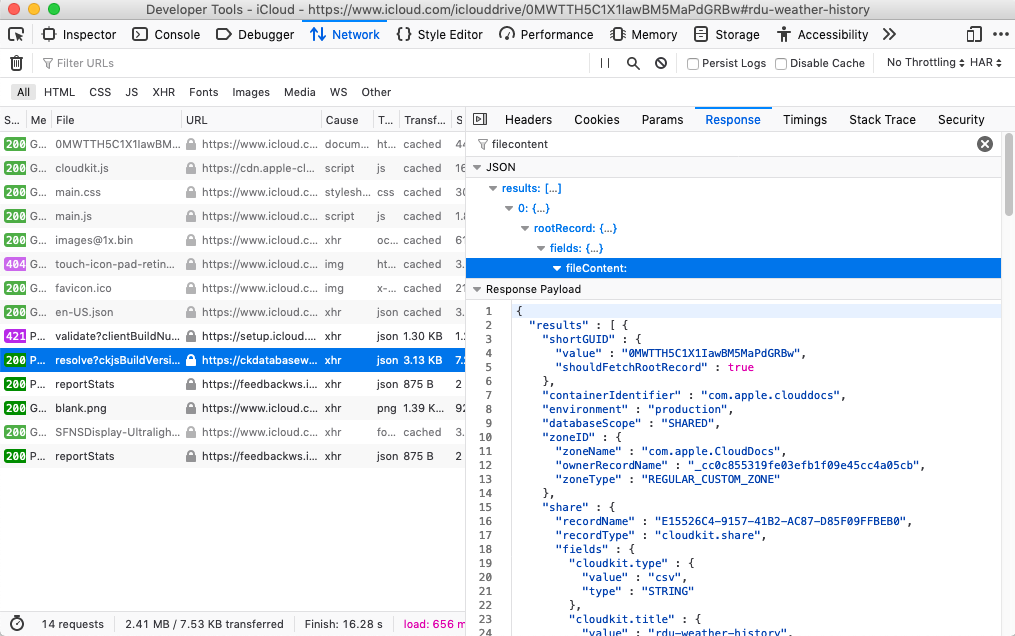

Generate a share link and copy it to your clipboard. Open a new browser tab and enable its network inspector. Paste the URL and hit Enter.

The network inspector will show a HTTP POST to a URL like this: https://ckdatabasews.icloud.com/database/1/com.apple.cloudkit/production/public/records/resolve?

Inspect the JSON response to that request. The raw CSV URL is found at results[0].rootRecord.fields.fileContent.value.downloadURL and looks like this:

https://cvws.icloud-content.com/B/AYifvNUNnayDN0SZAlizP8ZfYUPMAfZEgQW_YFfb6FUKTWO6xVkZo04B/${f}?o=AgSnT48VhMQtC-elFkgjbrw22qBLn3uBOytgkANDgAtv&v=1&x=3&a=CAogw0DCZoo9iGQlDuozkTAtH4vQXNvV5qk9j5g56uwuzaESHRDd_IWOgy4Y3dnhj4MuIgEAUgRfYUPMWgQZo04B&e=1581386329&k=Yc1Tyt4g4oKp6blXKa6yBA&fl=&r=b5089feb-afa2-4d0f-b207-9c9b16524c61-1&ckc=com.apple.clouddocs&ckz=com.apple.CloudDocs&p=24&s=UoT0siK5WgA5WNxN47jHUDlSzQo

Step 3: Pull the data into Redash

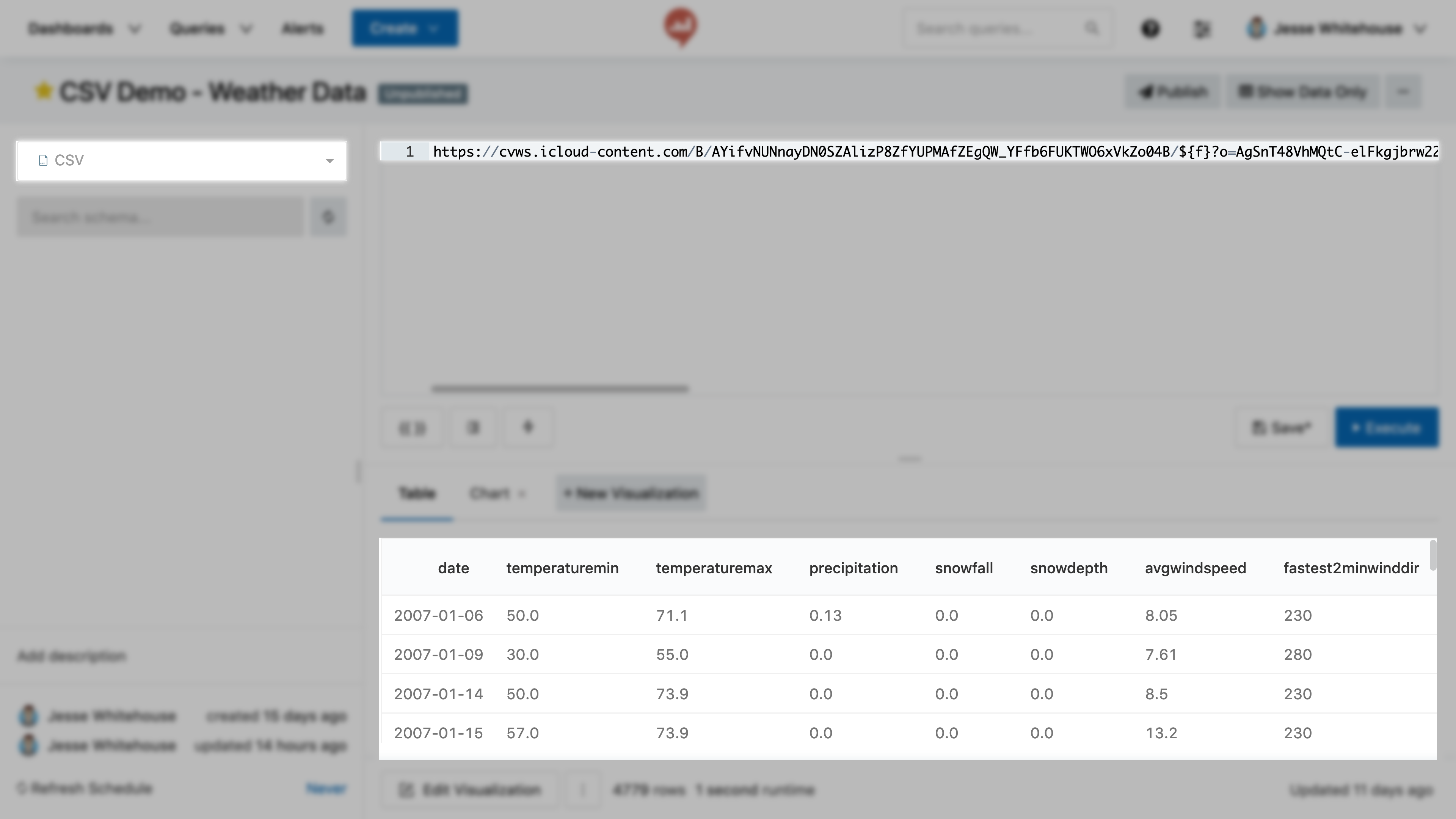

1. From the top menu click Create then New Query.
2. Set the data source to CSV data source from step 1.
3. Paste the URL from step 2 into the query editor.
4. Click Execute.

The CSV data is now available to Redash. If everything looks correct click Save. Then copy the query ID from the URL bar.

Step 4: Query the data with QRDS

1. From the top menu click Create and New Query.
2. Set the data source to the Query Results data source from step 1.

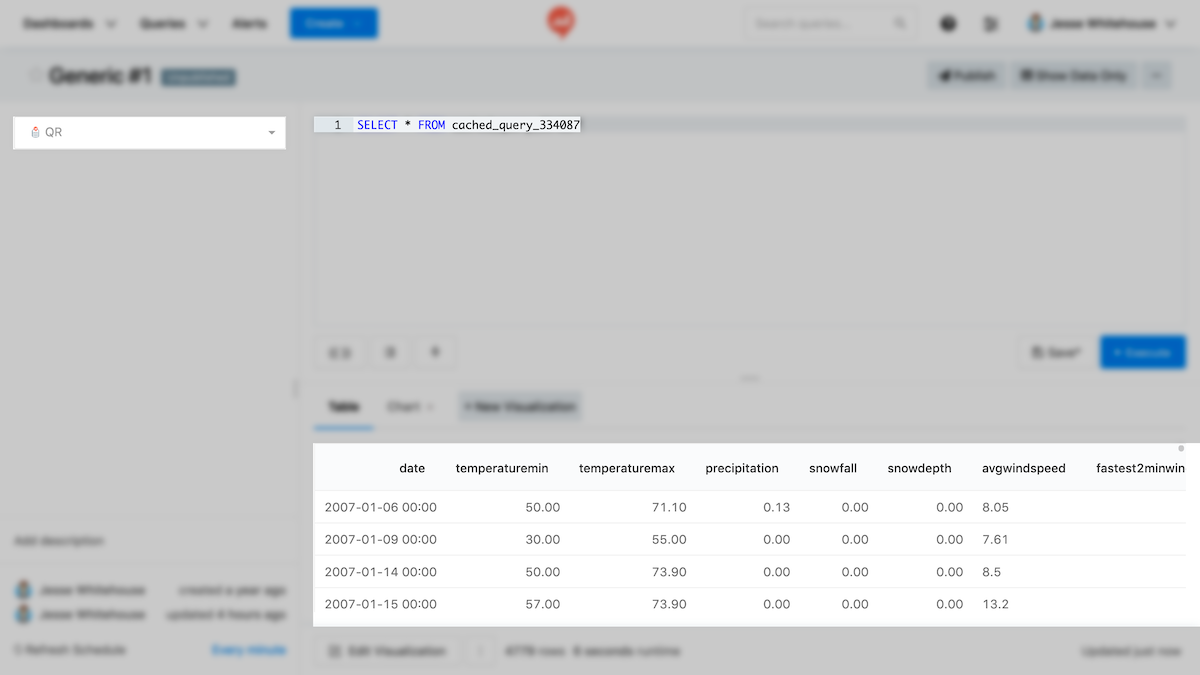

There’s a complete discussion of QRDS elsewhere in our documentation. A good first query looks like this.

SELECT * FROM cached_query_xxxx

Just replace cached_query_xxxx with the ID of your query from step 3 and click Execute. All the data from your CSV will appear in the results panel.

Now you can use QRDS to filter, aggregate, and combine the CSV using SQLite syntax.
